Snow Melting Mats
Snow Melting Mats are perfect for use on driveways, walkways, and more. Effortlessly clear snow without the need for shoveling or salting.
Key Benefits
Safety
Minimize the risk of slips and falls during the winter season. Have peace of mind with our 10-Year Warranty, and our one time SafetyNet Guarantee.
Convenience
Eliminate the need for manual snow shoveling or salt spreading. Easy installation featuring a 16ft cold lead, single point connection, and simple roll-out mats.
Automatic & Low Maintenance
Designed for a hassle-free operation, these systems automatically detect and melt snow and ice, keeping your driveways, walkways, and outdoor spaces clear and safe. Control this system from anywhere using our WiFi capable controls.
What are Snow Melting Mat Systems Designed for?
Warmup Snow Melting Mats are often used in concrete, asphalt driveways, and paved walkways. These mats work with electrical systems ranging from 208V to 277V and come in widths of 2ft or 3ft. The cables in the mat are pre-spaced to deliver 50W/sqft, ensuring effective melting during the winter months. They can be installed up to 4″ deep, either in a tire-track pattern or for complete coverage.
Suitable Coverings
Snow Melting Mat Systems can be used with coverings such as pavers and related masonry, concrete pours, and asphalt with a base consisting of crushed gravel or sand. These applications have a minimum coverage of 2″ and a maximum coverage of 4″. Refer back to the installation manual for specific instructions for each application type.
How Do Snow Melting Mat Systems Work?
When snow begins to fall and accumulate on the surface, your control system will detect the temperature and moisture levels. When conditions indicate the presence of snow or ice, the system will activate and begin to heat the slab. Electricity flows through the embedded heating elements, generating heat which is then transferred to the surface above, melting the snow and ice. Most of the melt will evaporate as the slab heats, leaving the surface clear of snow and ice which reduces the risk of refreezing.
Power Requirements
Heating mat(s) are spaced at 3” on center will output 50W/SF. Note: Warmup recommends a minimum of 38W/SF for snow melting applications.
240V in stock. Mats are available 2’ or 3’ wide and range from 10SF to 120SF. Note: 240V heating cable(s) can be de-rated using 208V however, will reduce the output by 25% (38W/SF).
Special order available for 208V, 277V, 480V, and 600V.
Note: Approximate lead times = 16 weeks.
3-Phase wiring may be suitable for your project – contact Warmup for details.
Guarantee & Warranty
Safety Net Installation GuaranteeIf you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another heater of the same make and model free.
10-Year WarrantyThis product comes with a 10-Year Warranty since we are completely confident in the standard of our products.
Technical Specifications
| Operating Voltage | 208V and 600V |
| Length | Ranges from 5ft to 60ft |
| Width | 2ft or 3ft |
| Mat Thickness | 1/4″ |
| Output Rating | ± 50W/sqft |
| Lead Wire | 16ft |
| Approvals | cULus |
You will also need
Controllers

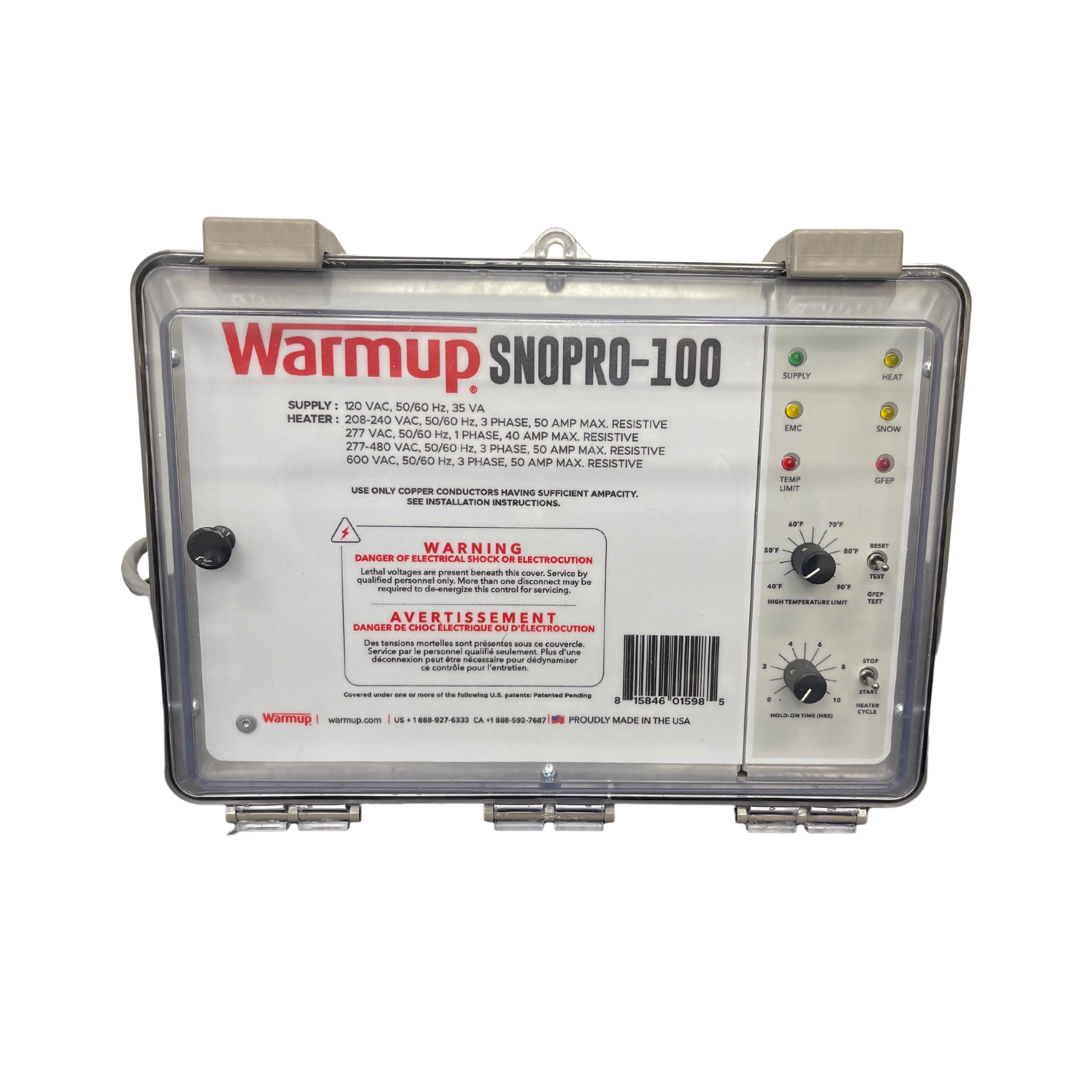

Warmup offers a selection of electric cable controls to suit your outdoor project ranging from WiFi capable to automatic with a sensor.
Accessories

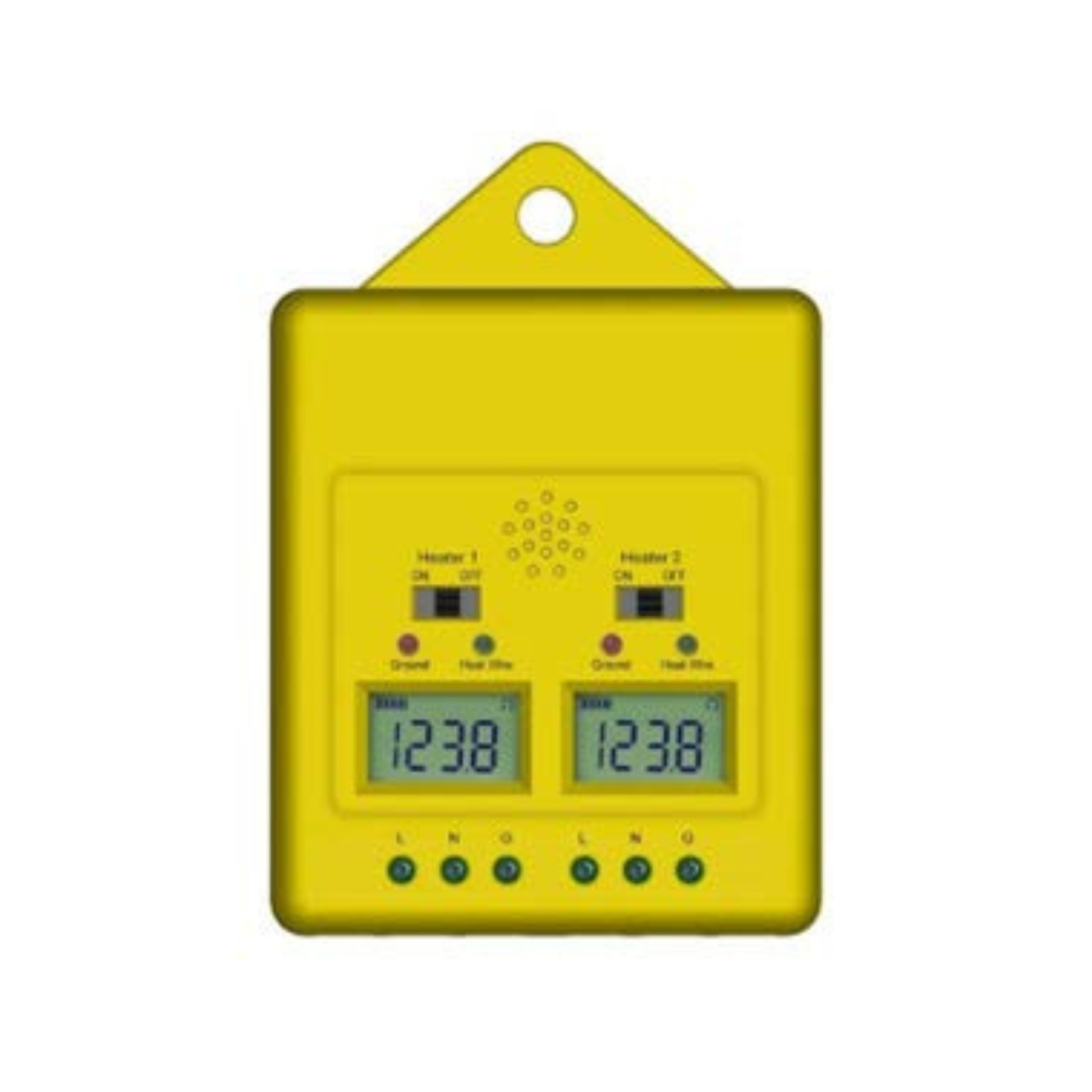

Additional Outdoor Accessories can include a Name Plate, Dual Cable Tester, Metal Fixing Bands, & Zipties.
