Laminate Floors


Warmup electric systems can be used with laminate flooring. Our wide range of products ensures that you have the perfect solution for heating a laminate floor.

underfloor heating foil heating in modern living room

Underfloor Heating Solutions for Laminate Floors

When choosing your laminate flooring ensure that the material is as dense as possible for good thermal conductivity. The denser the material, the better it transfers heat. Also, the thinner the flooring material and the higher the density, the shorter the heat-up time and more responsive the underfloor system will be.

Thermal Conductivity of Laminate

Floor Thickness

Both laminate and solid wood flooring make a good floor covering to go with underfloor heating as long as the wood is not overly thick. We recommend that wood or laminate thickness should be no more than 18mm as any thicker than this will hinder the efficient performance of the system. When it comes to the board width, wider boards will often show more “movement” than more narrow boards of the same material, so we recommend that the ratio of thickness to width should be in the region of 7 to 11. A board with a thickness of 16mm and width of 160mm would give a ratio of 10, so it is ideal.

Floor Temperature

Laminate and wooden floor surface temperatures should not exceed 27°C. This top temperature restriction is secured by using a thermostat which controls the heating system. If you are thinking of using floor heating as the sole/primary source of heat, get a heat calculation done to ensure that the floor heater will meet your heating requirement for the room. If you need help with a heat loss calculation, our expert team is available to help you on +1 (888) 927-6333.

foil heater

Electric Systems for Laminate

The most used radiant floor heating system for laminate floors is the Foil Heater. However, the best system for your project depends on the size of the room, floor height and many other factors. To help with deciding which system to choose, read our Buying Guide or contact us.

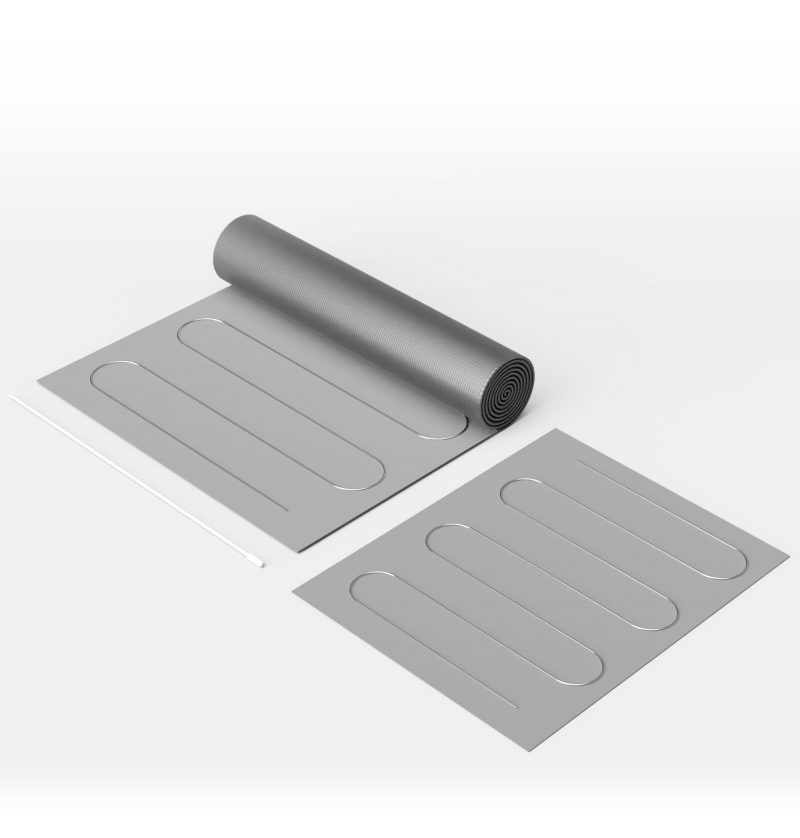

Foil Heater System

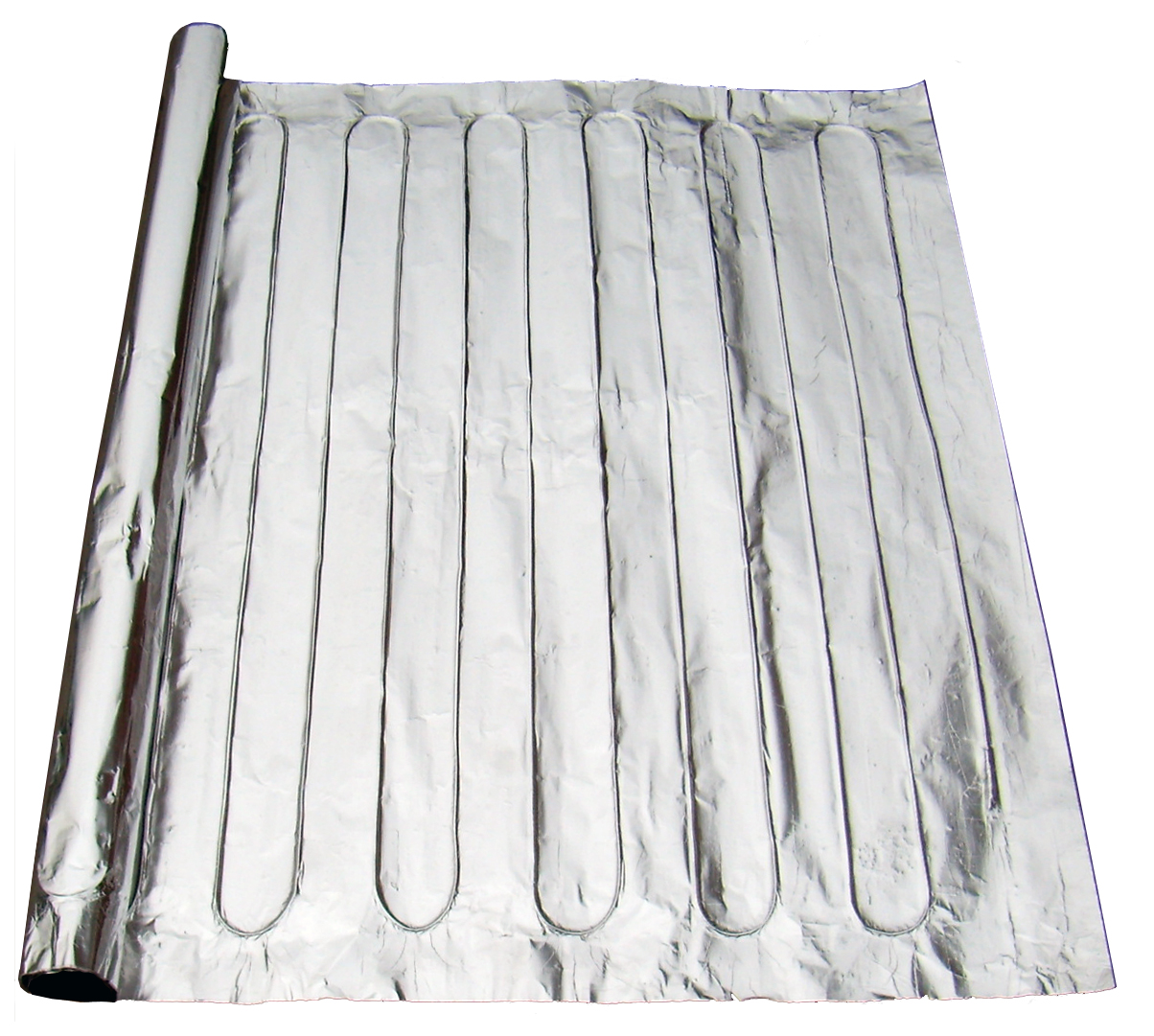

The Warmup Foil Heater is an electric underfloor heating system for laminate and other floating floor finishes. The Foil heater is made up of a fiber reinforced foil wrapped around a thin multi-strand, dual-core heating cable, that is insulated with an advanced fluoropolymer. The foil provides a continuous earth layer within the floor construction whilst diffusing the heat away from the heating cable.

foil heating rolled out

Installation for Laminate Flooring

Installation of underfloor heating is dependent on the type of the system. Foil Heater being a popular system with underfloor heating the installation will include:

  • – The type of underfloor heating
  • Underlay
  • – Fitting the final floor covering

Underlay Thickness

It is good to note that everything above the heater, including underlay and final floor finish, needs to be in the limits set in the table below.

If the manufacturer of the laminate flooring states that it must be used in conjunction with an underlay, the underlay must be no more than 3mm – 6mm thick and breathable.

Limits of Heat Transfer

When using the system with laminate flooring, care should be taken to ensure effective performance of the system and we do not recommend installing a floor heater if the limits below are not met. This may hinder the performance of the system and result in the system not working as desired.

Transfer of heat limits
Tog 1.5 (Unless otherwise stated)
RSI  0.15m² K/W (Unless otherwise stated)
R-Value (US) No more than 1.42

wooden flooring in modern living room
